2020 New DepEd School Building Designs




DepEd Logo

Department of Education
School Building Designs

1ST NATIONAL CONFERENCE OF DEPED ENGINERS AND ARCHITECTS
Development Academy of the Philippines, Tagaytay City

DESIGN CONSIDERATIONS

  • FUNCTION and NEEDS OF ITS USER
  • ECONOMY IN CONSTRUCTION, UTILIZATION and MAINTENANCE
  • HUMAN DIMENSIONS
  • APPLICABLE BUILDING CODES
  • GREEN BUILDING ADAPTATION
  • EFFECT OF CLIMATE CHANGE
  • CALAMITY-RESILIENT SCHOOL BUILDINGS
  • DESIGNED TO WITHSTAND 250 KPH WIND VELOCITY
  • DESIGNED TO WITHSTAND MAJOR EARTHQUAKE
  • COMPLIES WITH THE NATIONAL STRUCTURAL CODE OF THE PHILIPPINES (NSCP) 2010

DEPED NEW SCHOOL BUILDING DESIGNS

Architectural Features of the School Building were Upgraded

  • Doors & Windows:

-security grilles at front, casement window at rear side
-Concrete jamb

  • Stair width from 4.5M to 5.0M
  • Fire Exit Stair width from 0.90M to 1.20M (clear width)
  • Provision of Wet Standpipe System for 4 storey school building
  • Provision of Dry Standpipe System for 2 storey & 3 storey school building
  • Color Scheme

Structural Components were Upgraded

  • Roof Framing
  • Columns
  • Beams
  • Tie Beams
  • Foundation

NEW DEPED-DPWH School Building Designs
(CALAMITY-RESILIENT SCHOOL BUILDINGS)

ROOFING

0.4mm thick base metal (0.43m with metal coating)
Pre-Painted Long Span Corrugated GI Sheet




DepEd New School Building Design - Roofing
Roofing – 0.4mm thick base metal (0.43m with metal coating)
Pre-Painted Long Span Corrugated GI Sheet

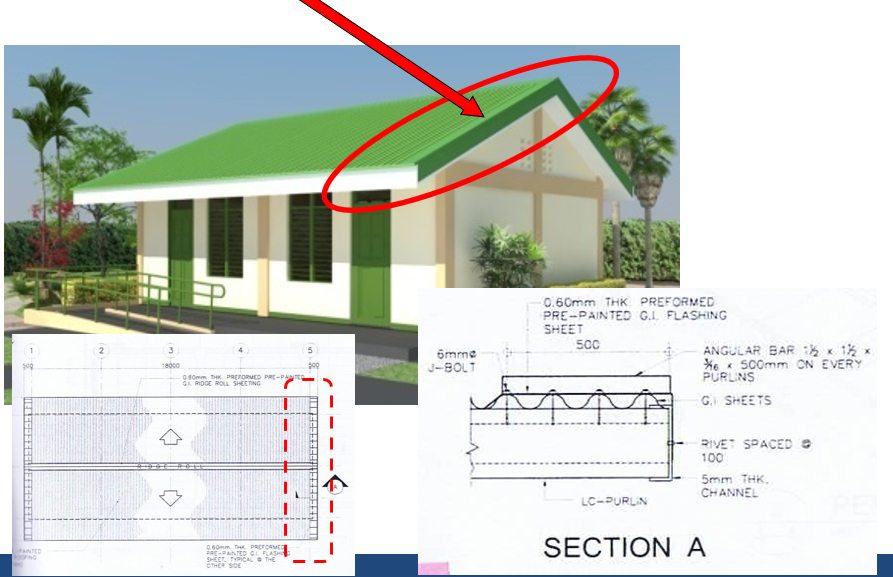

DepEd New School Building Design - Roofing Framing Support
Roofing Framing Support

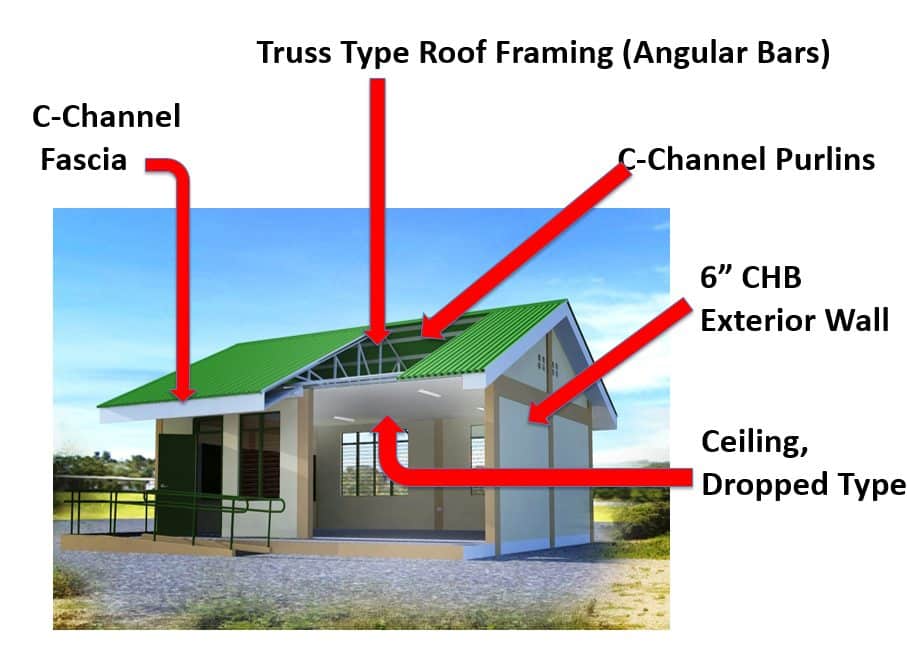

DepEd New School Building Design - Truss Type Roof Framing

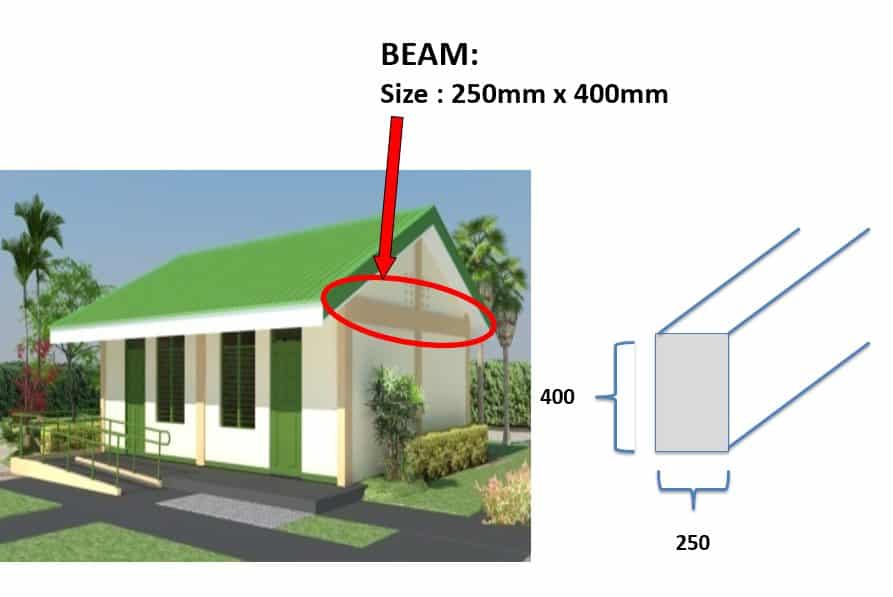

DepEd New School Building Design - Beam




DepEd New School Building Design - Columns

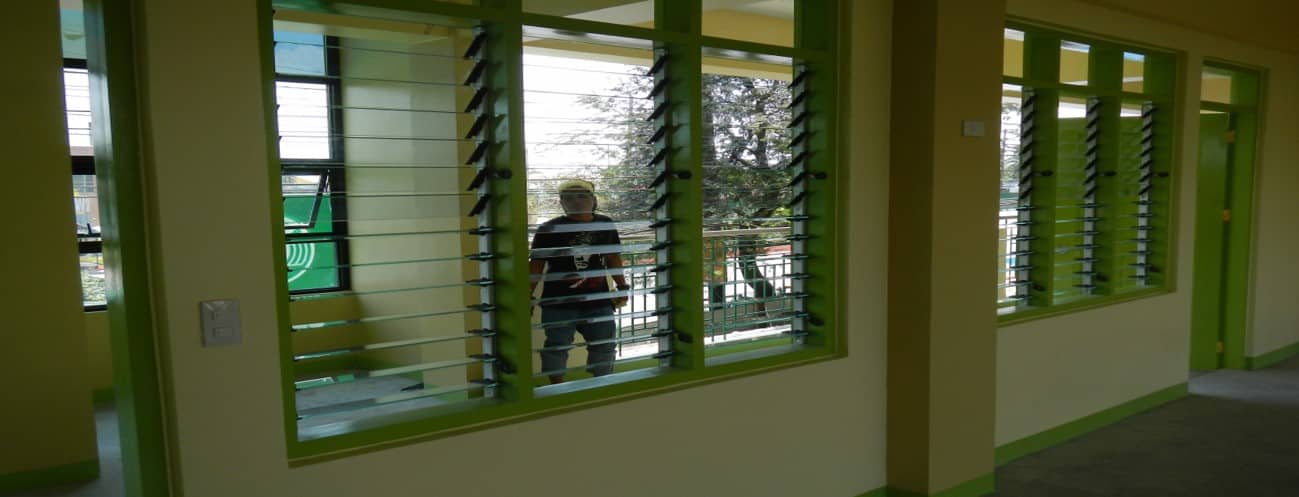

WINDOWS

14 Glass Jalousie Blades on a Shutter Type window holder (Jaloplus) w/ fixed clear glass transoms on 50x150mm concrete jambs

DepEd New School Building Design - Windows
14 Glass Jalousie Blades on a Shutter Type window holder (Jaloplus) w/ fixed clear glass transoms on 50x150mm concrete jambs

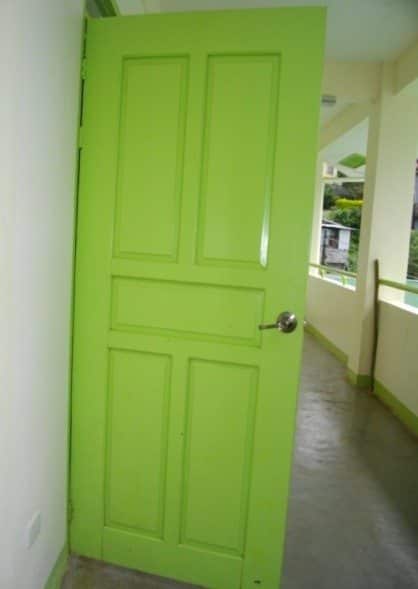

DOORS

2 Panel Type Door
(swing-out) with lever type lockset and Fixed Glass Transom on 50x150mm concrete jambs/frames.




DepEd New School Building Design - Doors
2 Panel Type Door
(swing-out) with lever type lockset and Fixed Glass Transom on 50x150mm concrete jambs/frames.

CEILING

4.5mm thick Fiber Cement Board on metal furring @400mm OC with aluminum for insulation

DepEd New School Building Design - Ceiling

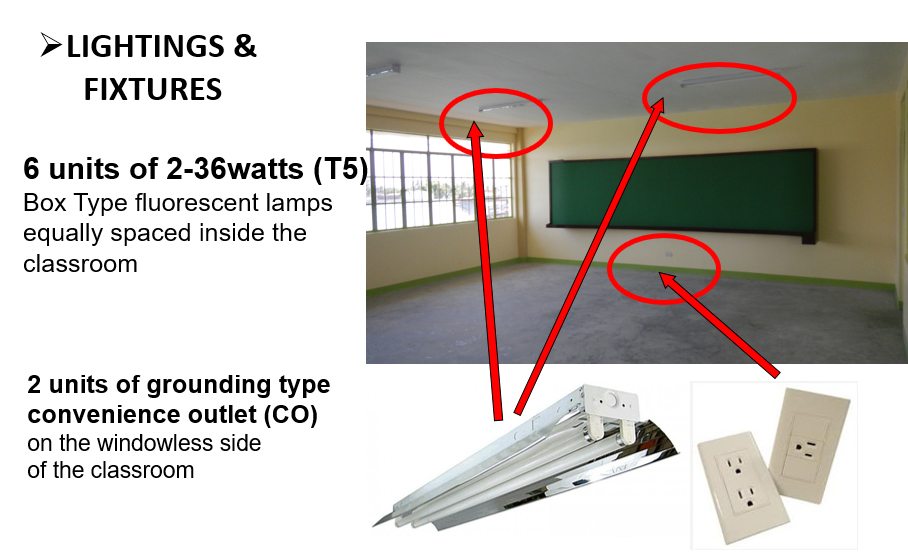

LIGHTINGS & FIXTURES

6 units of 2-36watts (T5) Box Type fluorescent lamps equally spaced inside the classroom

2 units of grounding type convenience outlet (CO) on the windowless side of the classroom

DepEd New School Building Design - Lightings & Fixtures

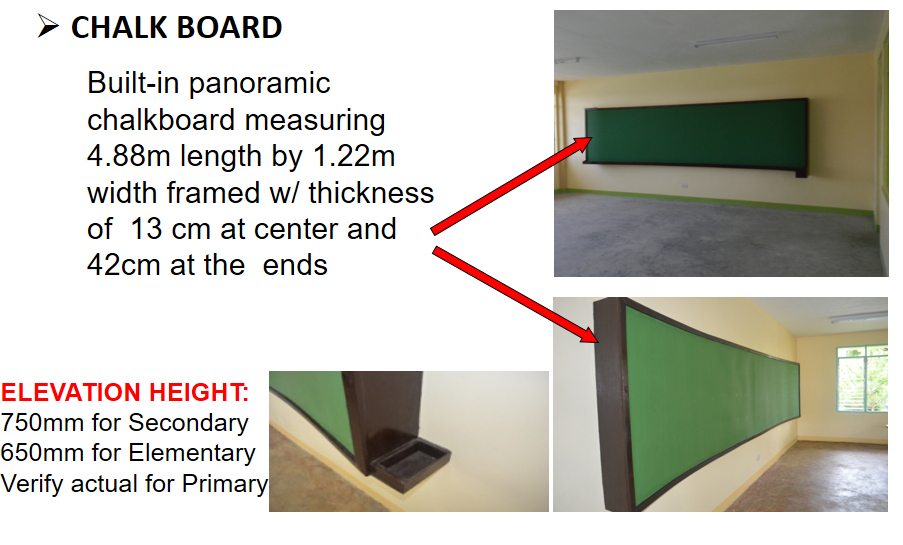

CHALK BOARD

Built-in panoramic chalkboard measuring 4.88m length by 1.22m width framed w/ thickness of 13 cm at center and 42cm at the ends

ELEVATION HEIGHT:

750mm for Secondary
650mm for Elementary
Verify actual for Primary

DepEd New School Building Design - Chalk Board

STRUCTURAL COMPONENTS

Roofing Sheet0.40mm THK pre-painted longspan corr. G.I roofing sheet
Roofing FrameTruss Type
- PurlinsLC – 150x65x20x2.0mm Purlins spaced @ 500mm O.C
- Sagrods 12mmØ sagrods
- Cross Bracing16mmØ cross bracings w/ standard turn buckle
- Roof ConnectionJ-Bolt
Beams
Beam Size250mmx400mm
Rebars: Ø16mm
Columns
- Size & Rebars350mmx350mm
Rebars: : Ø20mm
Tie Beam
- Size & Rebars250mmx400mm
Rebars: Ø16mm Bar
Footing
- Size & Rebars1200mmx1200mm
Rebars:Ø16mm Bar

* NOTES ON CONCRETE HOLLOW BLOCK WALLS:

Provide 150mm x 300mm STIFFENER COLUMN reinforced with 4-12mm with 10mm dia. Ties @ 150mm on center where concrete hollow block terminates & at every 3.00M length of concrete hollow block walls unless noted in structural plans.

AVAILABLE DESIGNS

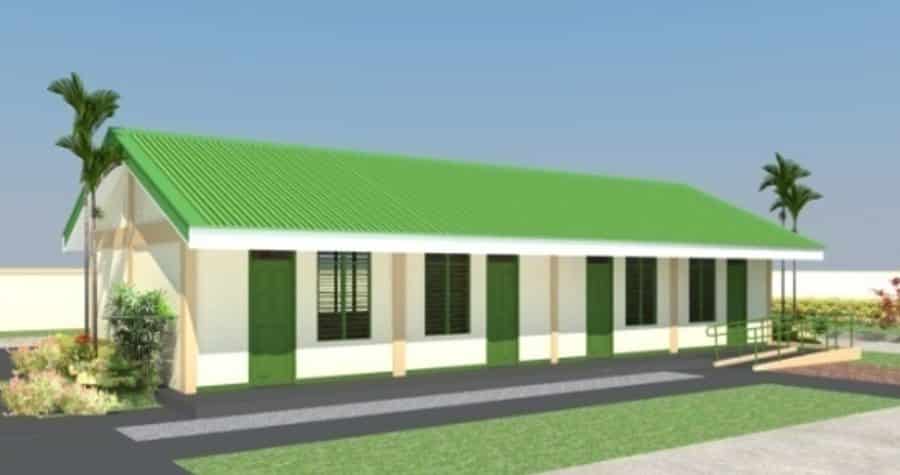

ONE (1) STOREY BUILDING

DepEd New School Building Design - ONE (1) STOREY BUILDING
ONE (1) STOREY BUILDING
  • 1 CLASSROOM
  • 2 CLASSROOM
  • 3 CLASSROOM
  • 4 CLASSROOM
  • 5 CLASSROOM

TWO (2) STOREY BUILDING

DepEd New School Building Design - TWO (2) STOREY BUILDING
TWO (2) STOREY BUILDING
  • 4 CLASSROOM
  • 6 CLASSROOM
  • 8 CLASSROOM
  • 10 CLASSROOM
  • 12 CLASSROOM

THREE (3) STOREY BUILDING

DepEd New School Building Design - THREE (3) STOREY BUILDING
THREE (3) STOREY BUILDING
  • 3 CLASSROOM
  • 6 CLASSROOM
  • 9 CLASSROOM
  • 12 CLASSROOM
  • 15 CLASSROOM

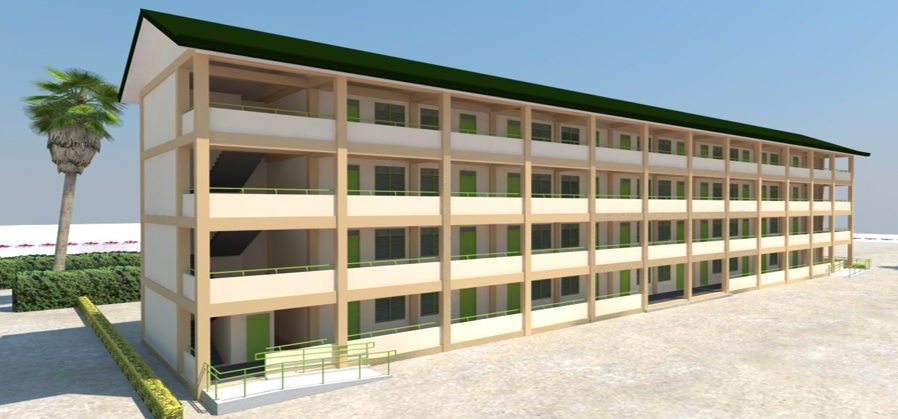

FOUR (4) STOREY BUILDING

DepEd New School Building Design - FOUR (4) STOREY BUILDING
FOUR (4) STOREY BUILDING
  • 4 CLASSROOM
  • 8 CLASSROOM
  • 12 CLASSROOM
  • 16 CLASSROOM
  • 20 CLASSROOM

2 Storey 2, 4 & 6 Classroom Ground Floor Plan

DepEd New School Building Design - Four Classrooms Ground Floor Plan
Four Classrooms Ground Floor Plan
DepEd New School Building Design - Six Classrooms Ground Floor Plan
Six Classrooms Ground Floor Plan

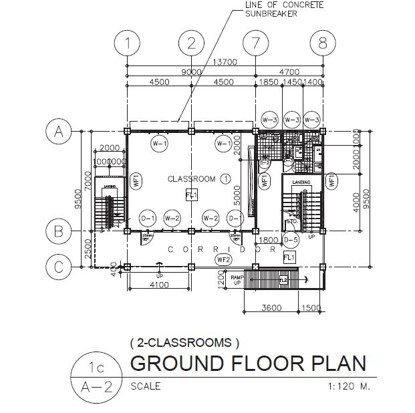

DepEd New School Building Design - Two Classrooms Ground Floor Plan
Two Classrooms Ground Floor Plan

2 Storey 8, 10 & 12 Classroom Ground Floor Plan

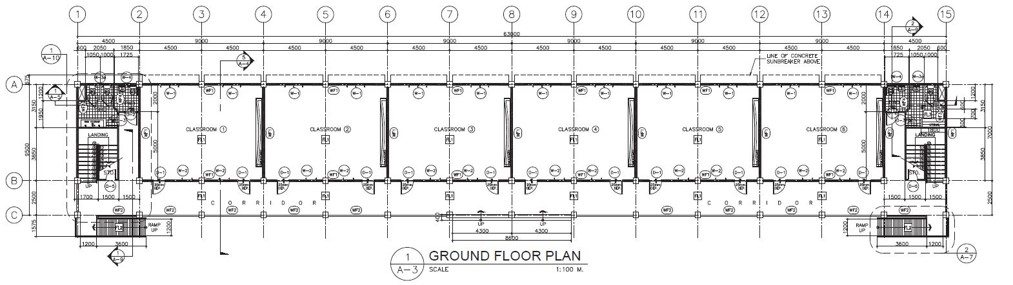

DepEd New School Building Design - Twelve Classrooms Ground Floor Plan
Twelve Classrooms Ground Floor Plan
DepEd New School Building Design - Ten Classrooms Ground Floor Plan
Ten Classrooms Ground Floor Plan

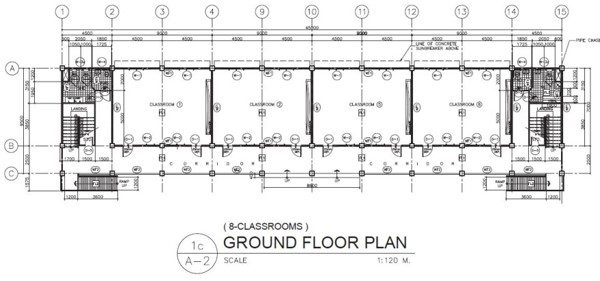

DepEd New School Building Design - Eight Classrooms Ground Floor Plan
Eight Classrooms Ground Floor Plan

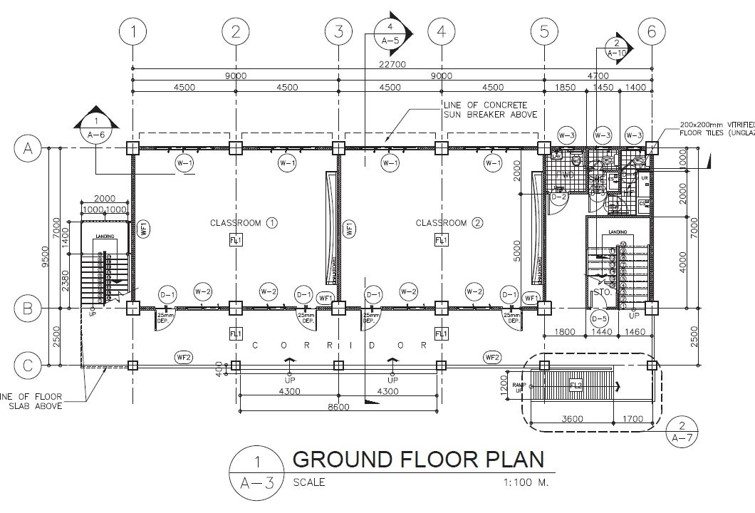

3 Storey 3 & 6 Classroom Ground Floor Plan

3 Storey 3 & 6 Classroom Ground Floor Plan
6 Classroom Ground Floor Plan

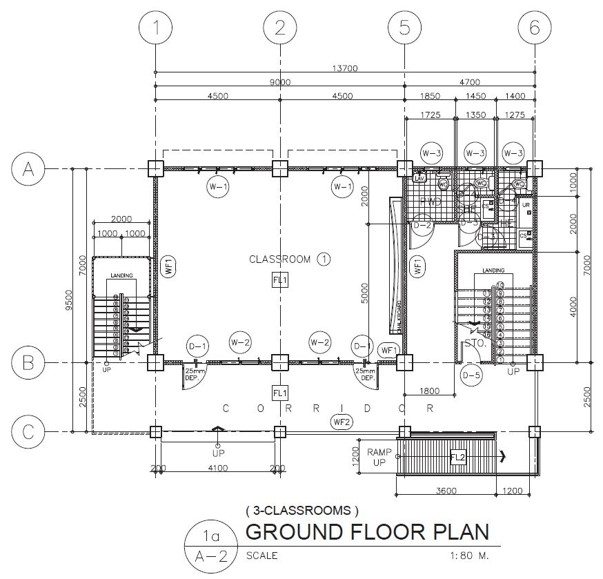

3 Storey 3 Classroom Ground Floor Plan
3 Classroom Ground Floor Plan

3 Storey 9,12 & 15 Classroom Ground Floor Plan

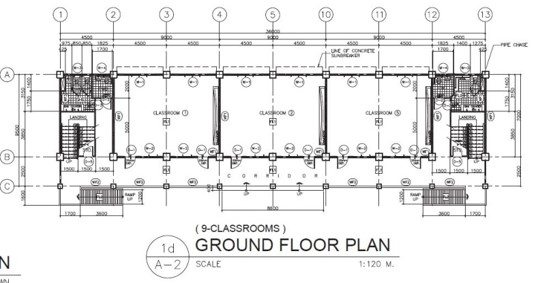

3 Storey 9 Classroom Ground Floor Plan
9 Classroom Ground Floor Plan

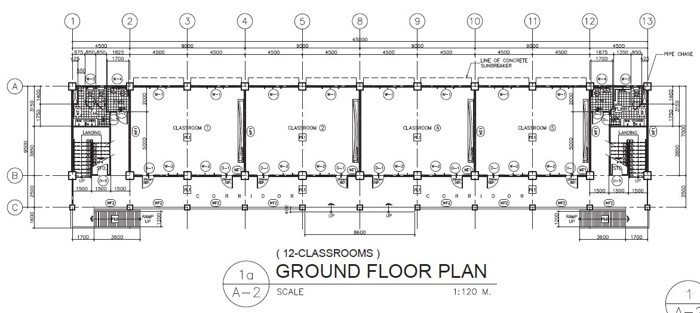

3 Storey 12 Classroom Ground Floor Plan
12 Classroom Ground Floor Plan

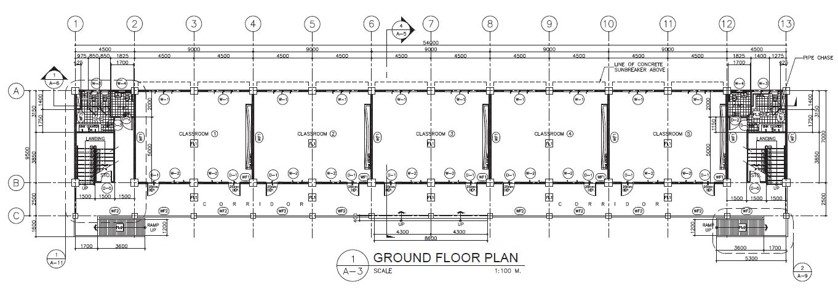

3 Storey 15 Classroom Ground Floor Plan
15 Classroom Ground Floor Plan

4 Storey 4 & 8 Classroom Ground Floor Plan

4 Storey 8 Classroom
4 Storey 8 Classroom Ground Floor Plan

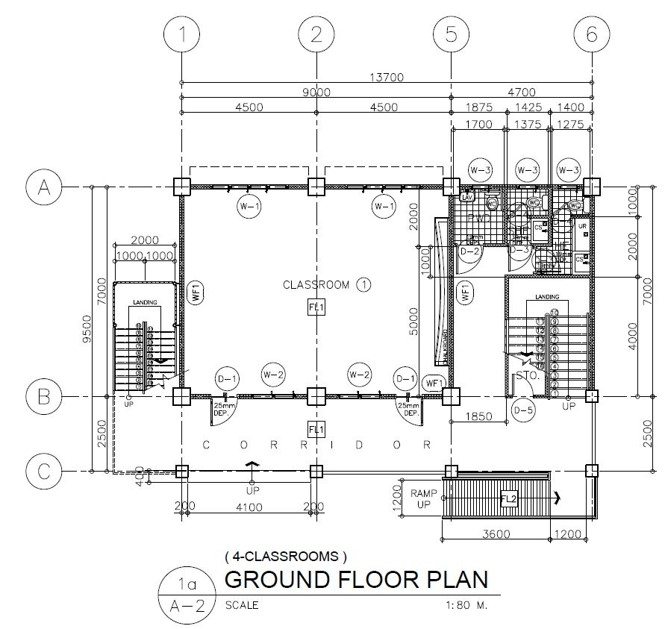

4 Storey 4 Classroom
4 Storey 4 Classroom Ground Floor Plan

4 Storey 12, 16 & 20 Classroom Ground Floor Plan

4 Storey 12 Classroom Ground Floor Plan
12 Classroom Ground Floor Plan

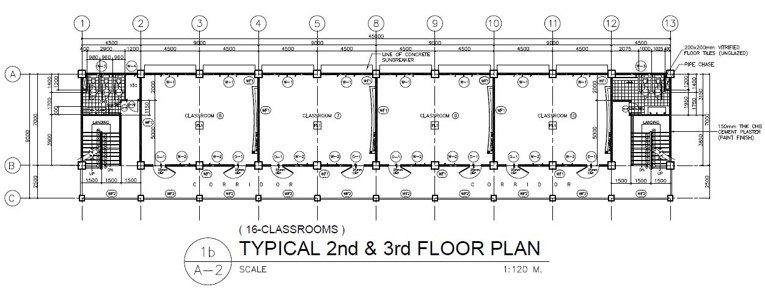

4 Storey 16 Classroom Ground Floor Plan
16 Classroom Ground Floor Plan

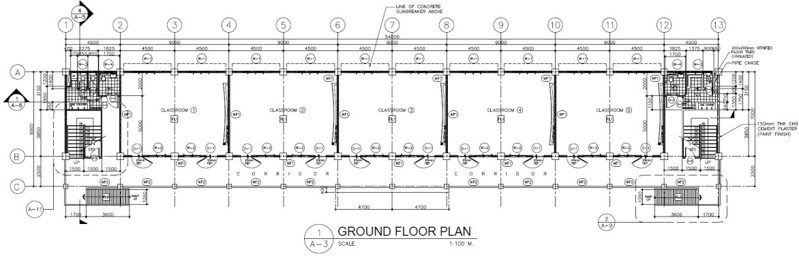

4 Storey 20 Classroom Ground Floor Plan
20 Classroom Ground Floor Plan

FACILITIES FOR SENIOR HIGH SCHOOL

DESIGN CONSIDERATIONS

  • Space/Area Requirements
  • Required Equipment/Tools/Furniture
  • Function of Building
  • Number of Users
  • Existing School Building Designs

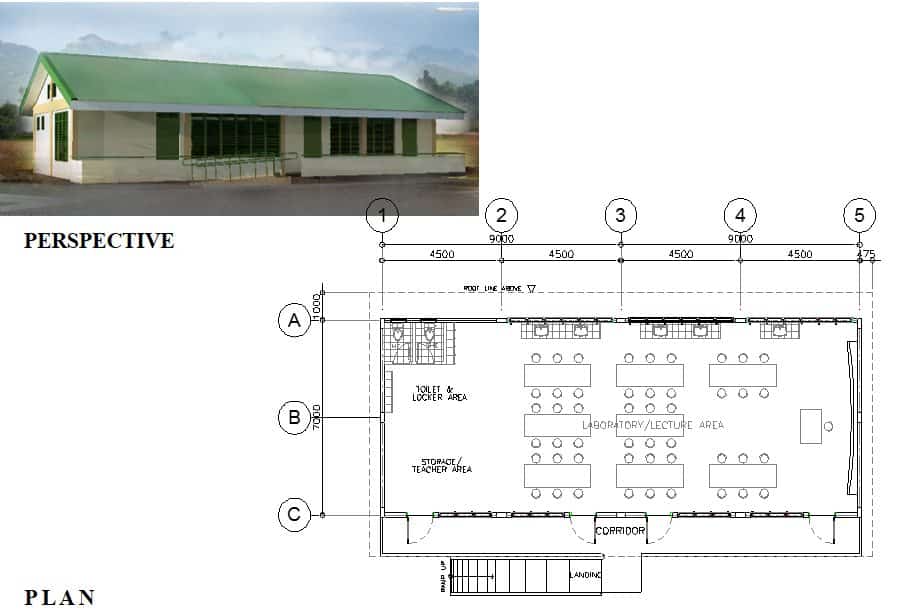

SINGLE STOREY  SCIENCE LABORATORY BUILDING (7m x 18m)

SINGLE STOREY SCIENCE LABORATORY BUILDING

SCIENCE LABORATORY ON A MULTI-STOREY BUILDING

SCIENCE LABORATORY ON A MULTI-STOREY BUILDING

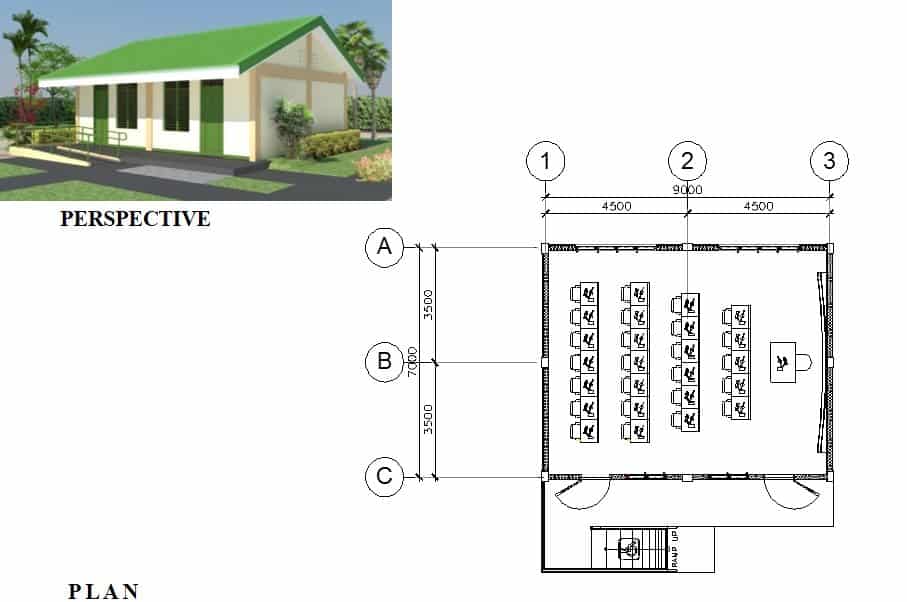

SINGLE STOREY COMPUTER LABORATORY BUILDING (7m x 9m)

SINGLE STOREY COMPUTER LABORATORY BUILDING (7m x 9m)

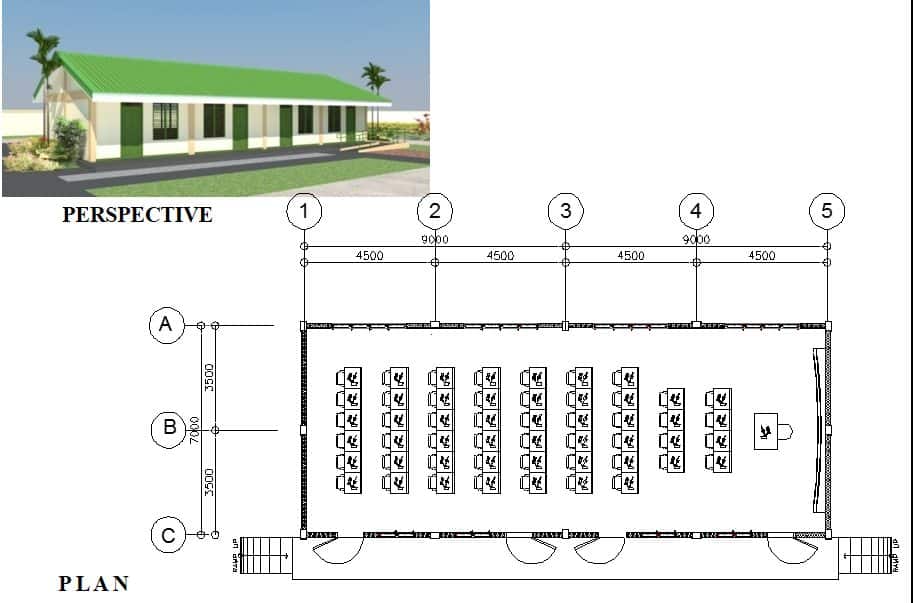

SINGLE STOREY COMPUTER LABORATORY BUILDING (7m x 18m)

SINGLE STOREY COMPUTER LABORATORY BUILDING (7m x 18m)

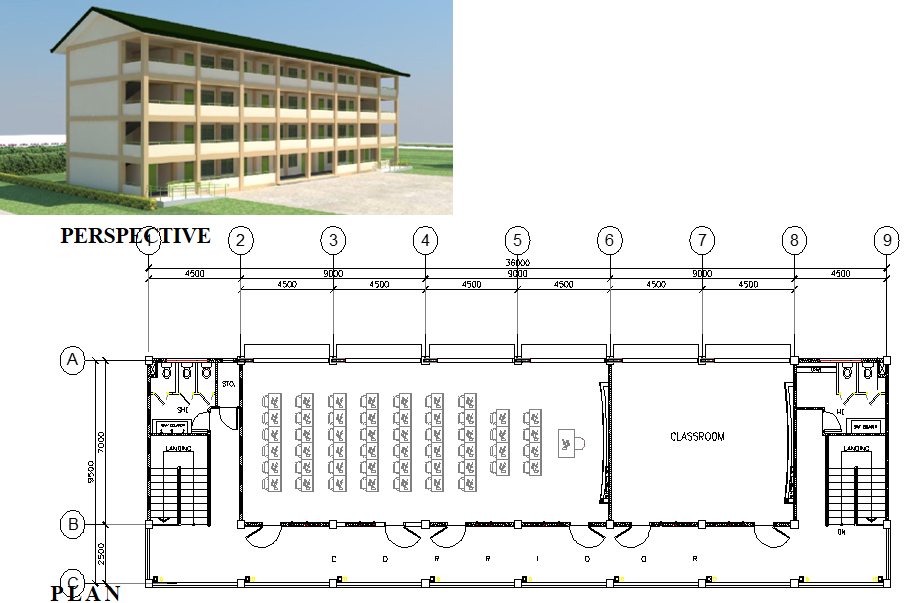

COMPUTER LABORATORY ON A MULTI-STOREY BUILDING

COMPUTER LABORATORY ON A MULTI-STOREY BUILDING

TWO (2) STOREY SIX (6) CLASSROOM SCHOOL BUILDING (DRY WALL PARTITION)

Two Storey Six Classroom School Building Design Drywall Partition

Two Storey Six Classroom School Building Design Drywall Partition 2

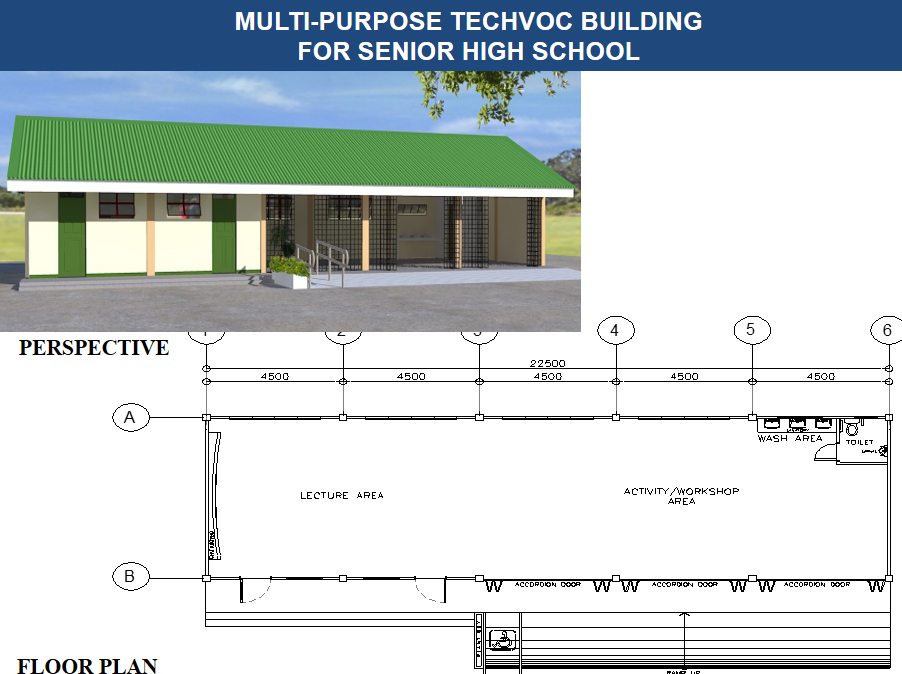

MULTI-PURPOSE TECHVOC BUILDING FOR SENIOR HIGH SCHOOL

MULTI-PURPOSE TECHVOC BUILDING FOR SENIOR HIGH SCHOOL

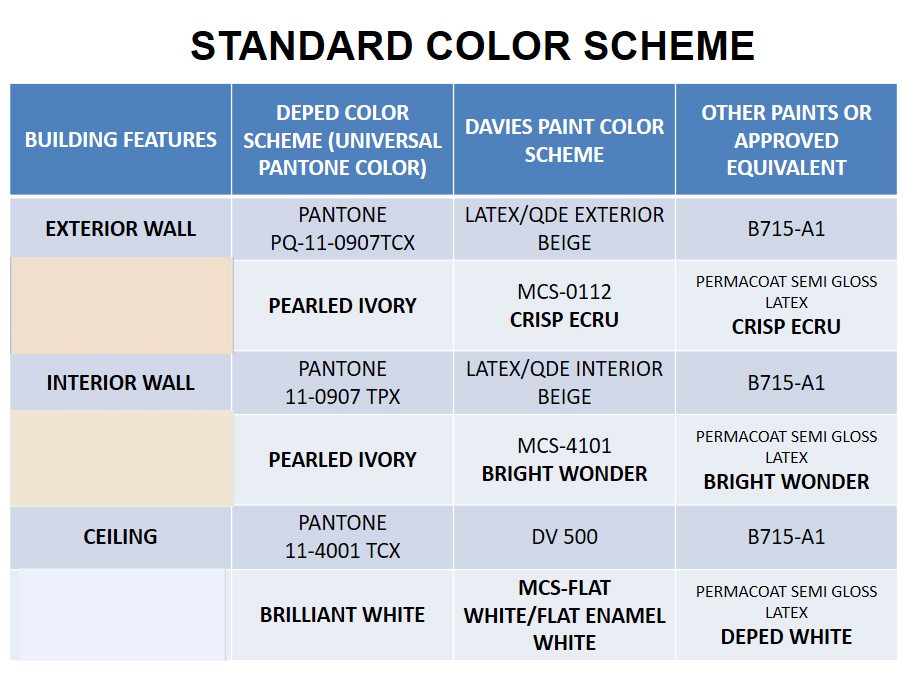

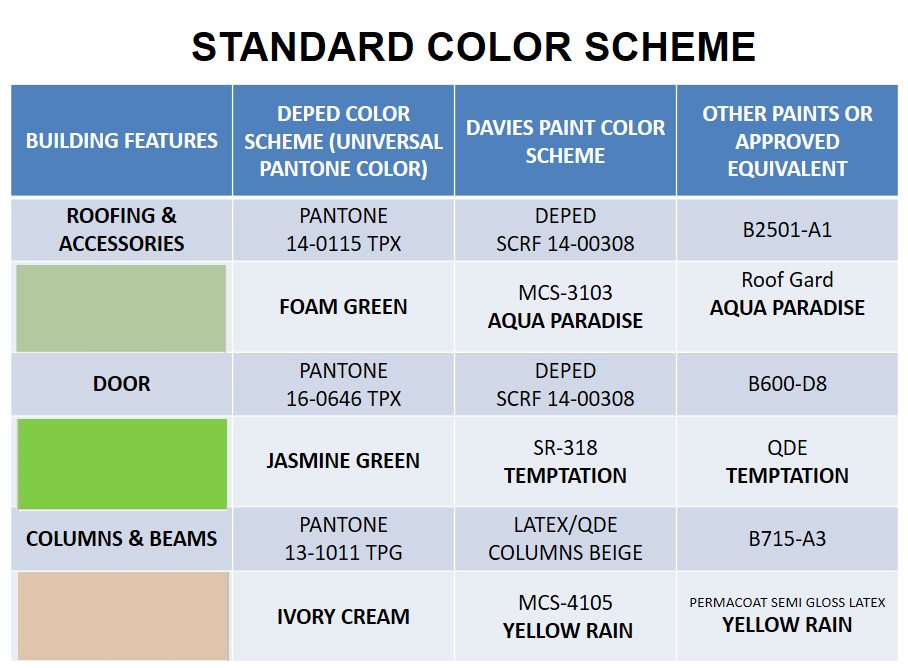

STANDARD COLOR SCHEME

Standard Color Scheme 2 Standard Color Scheme

Improvements will be meaningless if we cannot implement/execute the design as planned.
